For capsule and tablet supplement manufacturers, accurate counting and stable packaging are essential for daily production. Small solid products such as capsules, softgels, vitamin tablets, herbal capsules, and nutritional supplements usually require fixed quantity packaging, clean sealing, and professional finished bag appearance.
Manual counting and packing can be slow, labor-intensive, and easy to make mistakes, especially when the production quantity increases. To help manufacturers improve efficiency and reduce manual errors, VGOPACK provides automatic counting and packing solutions for capsule and tablet products.
This 3 vibration bowls counting packing machine is designed for capsule and tablet packaging in 3-side seal linked bags, making it suitable for sample packs, daily packs, supplement packs, and connected pouch packaging.
Machine Application
This capsule and tablet counting packing machine is suitable for a wide range of small solid supplement products that require accurate quantity counting.
It can be used for:
- Capsules
- Softgel Capsules
- Vitamin Tablets
- Herbal Capsules
- Nutritional Capsules
- Functional Supplement Capsules
- Sample Capsules
- Trial Packs
- Other Regular-Shaped Capsule or Tablet Products
For different capsule sizes, tablet shapes, quantities per bag, and packaging styles, VGOPACK can customize the vibration bowls and counting system according to the customer' s actual product samples.
Machine Solution

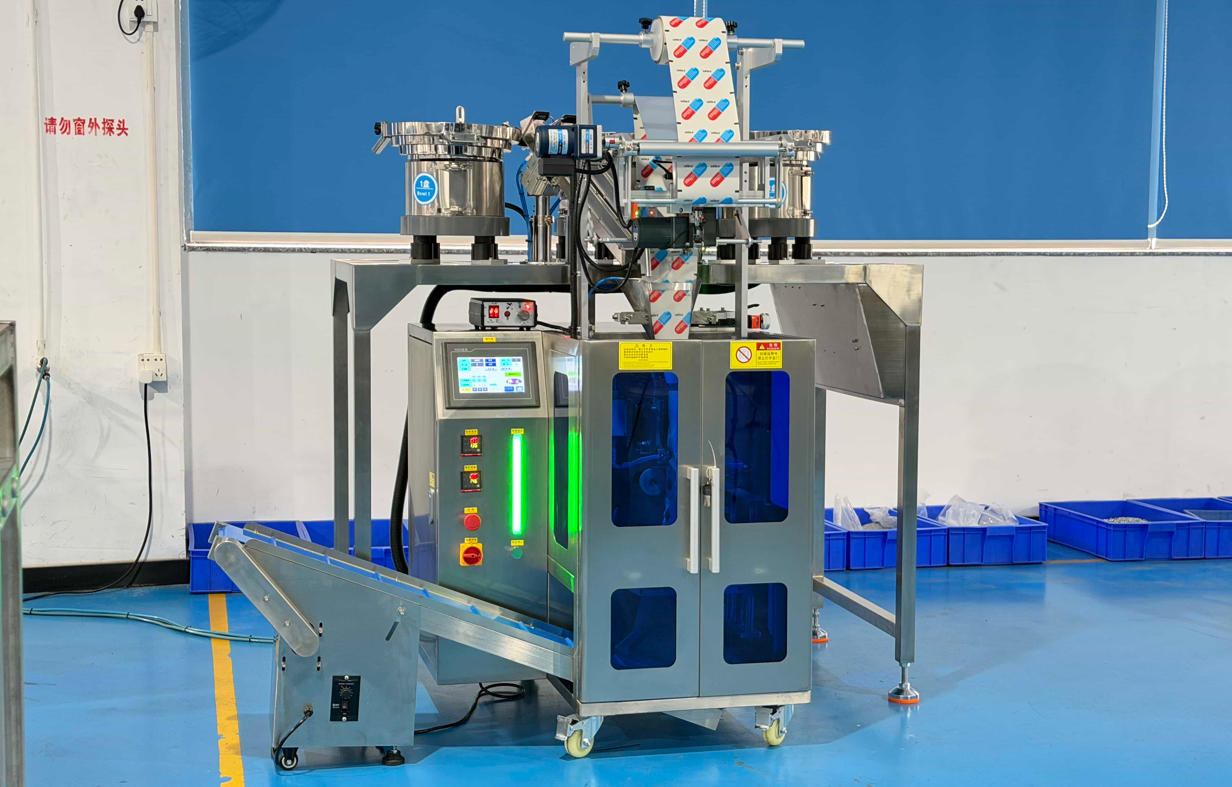

For this project, VGOPACK provides a 3 Vibration Bowls Automatic Counting Packing Machine for Capsule 3-Side Seal Linked Bag, model VGO-V280-C3.

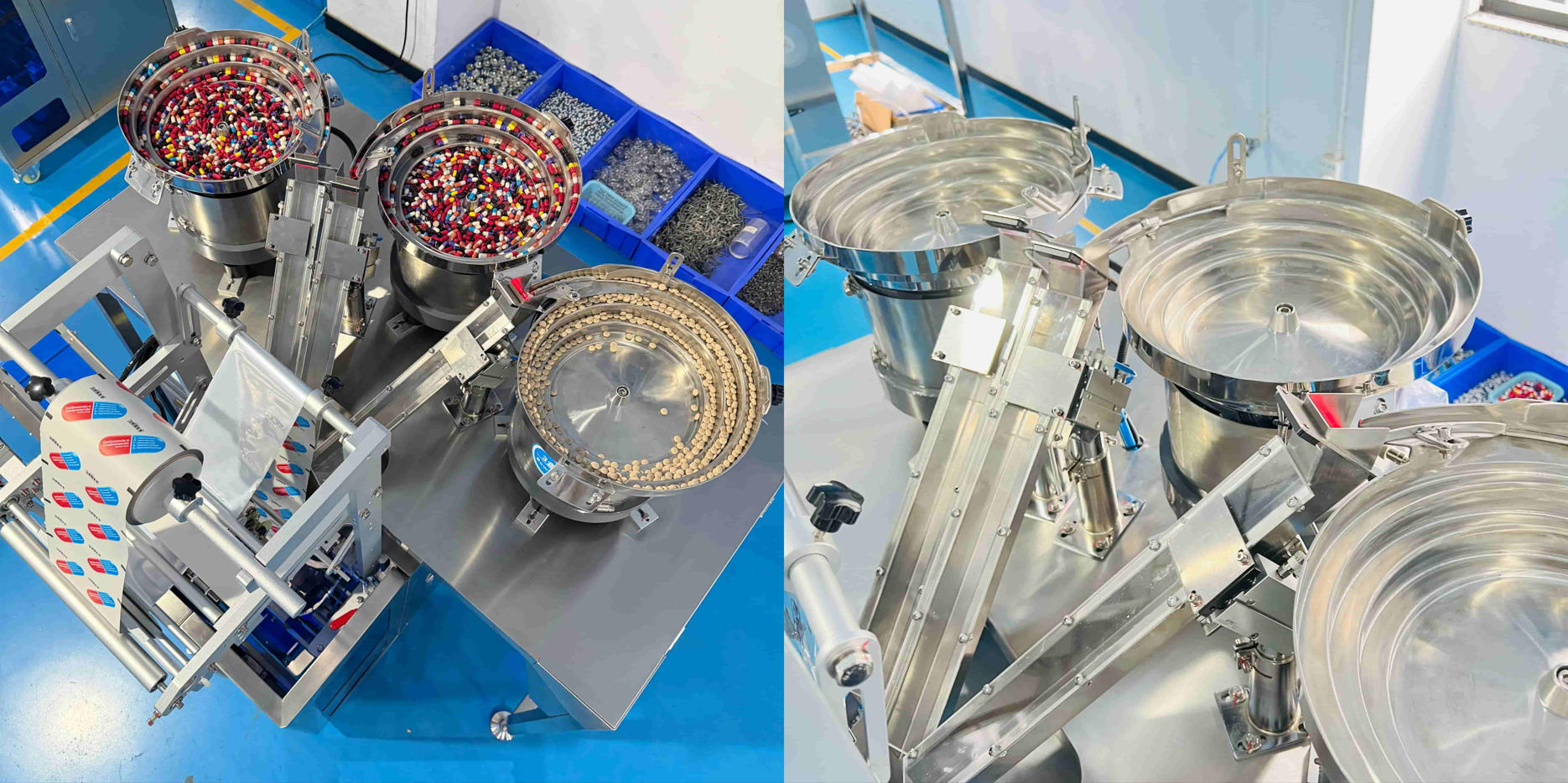

The machine uses three customized vibration bowls to automatically feed and separate capsules or tablets. Each bowl can work as an independent feeding channel, helping the machine count products accurately and smoothly.

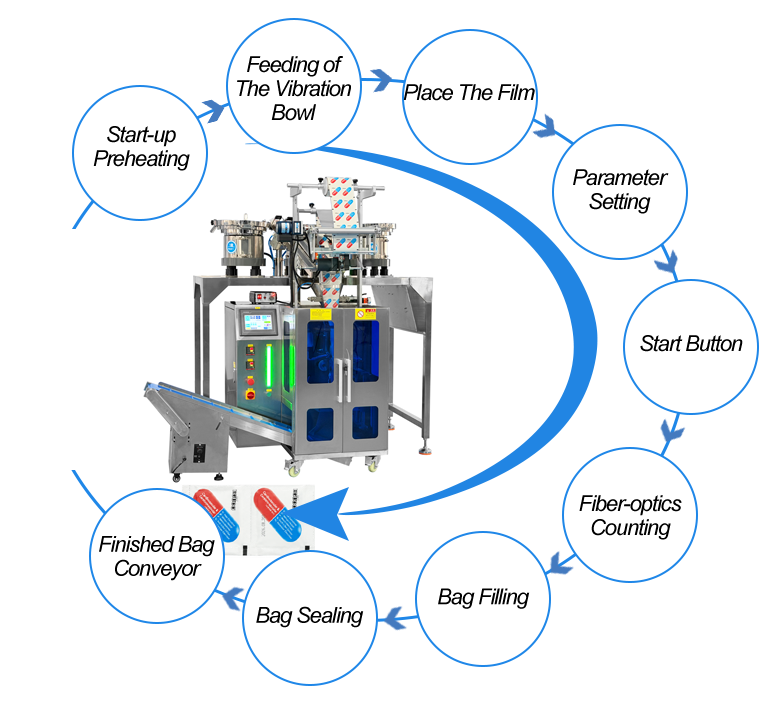

After the preset quantity is reached, the counted products are discharged into the packing machine. The machine then automatically completes:
- Product Feeding
- Product Counting
- Bag Forming
- Product Filling
- Bag Sealing
- Bag Cutting
- Linked Bag Output
This machine can be used for single-type product packaging or mixed product packaging. For example, different capsules or tablets can be counted from different bowls and packed into the same pouch according to the required combination.

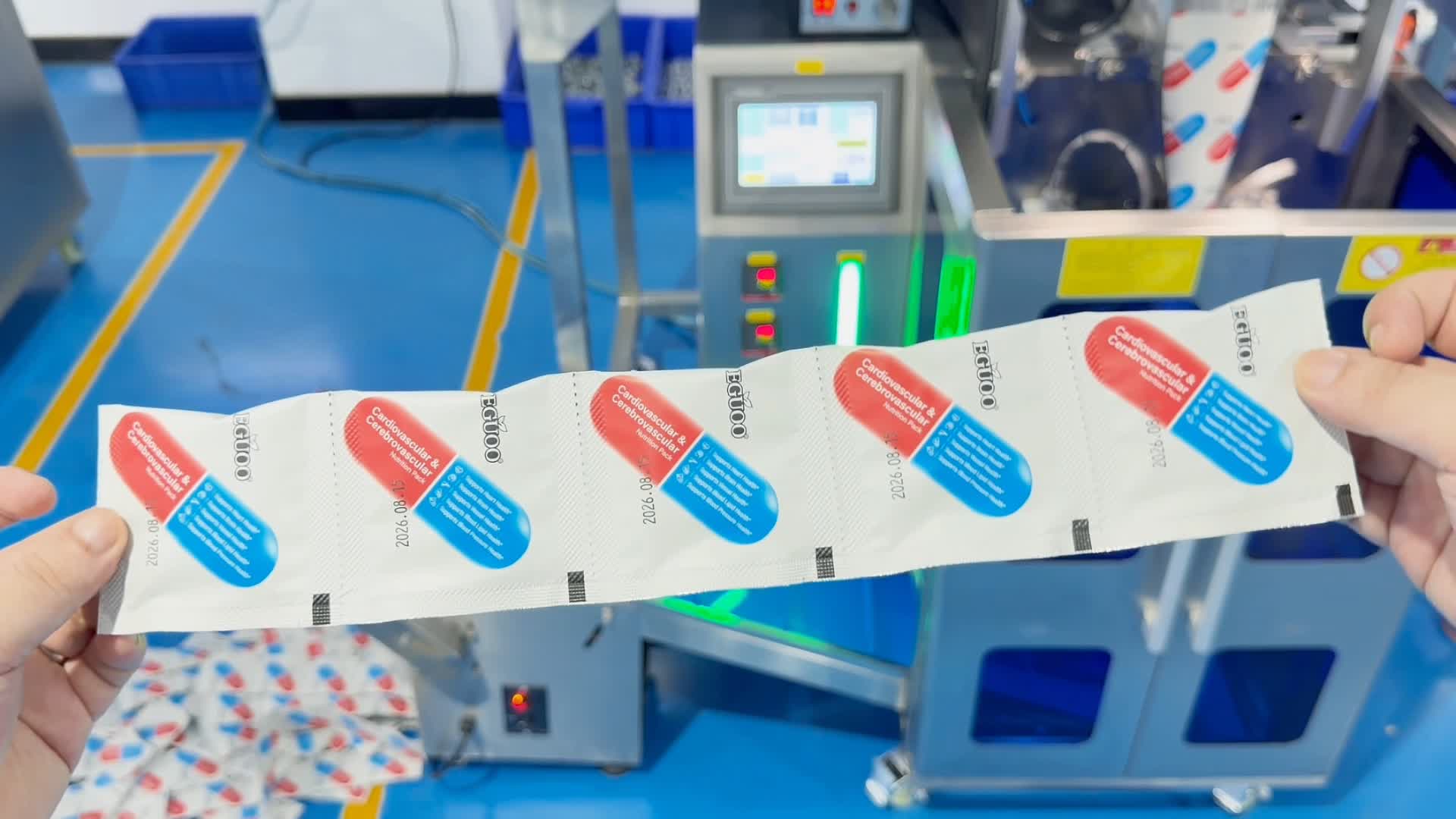

3-Side Seal Linked Bag Packing
The 3-side seal linked bag is a practical packaging style for capsule and tablet products.
Compared with individual single bags, linked bags can connect multiple pouches in one strip. This is suitable for daily supplement packs, sample packs, travel packs, trial packs, and combination supplement packaging.
The linked bag format helps customers create organized packaging and improve product presentation. The machine can also be adjusted according to the required pouch quantity in one connected strip.
Main Features
Accurate Counting System
The machine uses vibration bowls and a counting system to count capsule and tablet products according to the preset quantity. This helps reduce manual counting errors and ensures more consistent quantity in each pouch.
Customized Vibration Bowls
The vibration bowls and counting bowls can be customized according to product size, shape, surface condition, and quantity requirements.
Customized feeding design helps achieve:
- Smooth Feeding
- Stable Product Separation
- Accurate Counting
- Reduced Product Jamming
- Better Production Stability
Automatic Packaging Process
The machine integrates several functions into one automatic system:
- Feeding
- Counting
- Filling
- Sealing
- Cutting
- Date Printing
- Easy Tear Notch Cutting
This automatic process helps reduce manual operation and improve packaging efficiency.
PLC Control System
With PLC control, operators can set the bag length and cutting position through the system. This helps save time and reduce film waste during production adjustment.
Photoelectric Eye Tracking
The high-sensitivity photoelectric eye color tracing system helps improve the accuracy of cutting and sealing position, especially when using printed packaging film.
Independent PID Temperature Control
The machine uses independent PID temperature control, making it suitable for different heat-sealable packaging materials such as co-extrusion PE film and laminated films including OPP, CPP, and PE.
Touch Screen Operation
The touch screen allows operators to set parameters quickly and easily, including counting quantity, bag length, sealing temperature, and packing speed.
Same Product or Mixed Product Packing
The machine can count and pack the same product into each pouch, or count different products from different bowls and pack them together. This provides flexibility for capsule and tablet manufacturers with different packaging needs.
Packaging Materials and Bag Style
This machine is suitable for heat-sealable roll film packaging materials, including:
- Co-Extrusion PE Film
- Heat-Sealable Laminated Film
- OPP
- CPP
- PE
The main packaging style for this solution is:
- 3-Side Seal Bag
- 3-Side Seal Linked Bag
According to different machine models and customer requirements, other bag styles can also be considered.
Shipment Preparation
Before delivery, VGOPACK completes a full machine testing and inspection process to make sure the equipment meets production requirements.
The testing process usually includes:
- Machine Running Test
- Capsule Feeding Test
- Counting Accuracy Test
- Bag Forming Test
- Sealing Quality Test
- Linked Bag Cutting Test
- Finished Bag Output Test
After the machine passes inspection, it is carefully packed with export-standard packaging materials and prepared for shipment.
Why Choose VGOPACK?
VGOPACK provides customized counting and packing solutions for capsule, tablet, softgel, gummy candy, hardware parts, plastic components, and other small solid products.
For capsule and tablet packaging projects, VGOPACK designs the machine according to:
- Product Size
- Product Shape
- Quantity Per Pouch
- Bag Style
- Bag Type Requirement
- Packing Speed
- Production Layout
VGOPACK can provide different capsule and tablet counting packing solutions, including:
- Vibration Bowl Counting Packing Machine
- Electronic Heads Weighing Packing Machine
- Counting and Weighing Packing Machine
- Semi Automatic Packing Machine
- Mini Pre-made Bag Packing Machine
Whether customers need individual pouches, 3-side seal bags, 4-side seal bags, linked bags, or mixed supplement packs, VGOPACK can recommend a suitable machine configuration based on the actual product and packaging requirements.
Conclusion
This capsule and tablet 3-side seal linked bag counting packing machine is a practical solution for supplement manufacturers who need accurate counting, stable sealing, and automatic connected pouch packaging.
With three customized vibration bowls, accurate counting technology, automatic packaging functions, and flexible linked bag output, this machine helps customers improve production efficiency, reduce manual errors, and achieve clean, consistent finished packages.
If you are looking for a capsule and tablet counting packing machine for 3-side seal linked bags, VGOPACK can help design a customized solution according to your product and production needs.
