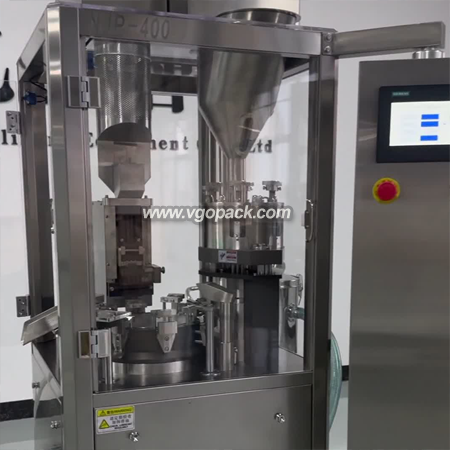

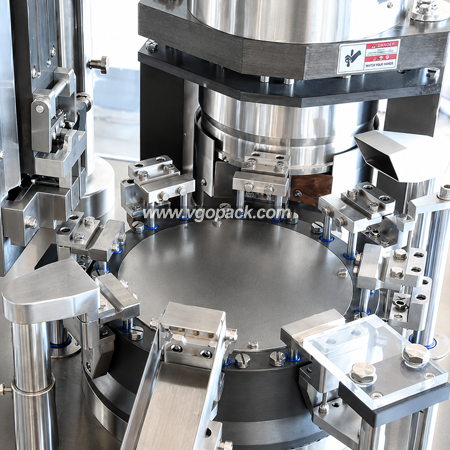

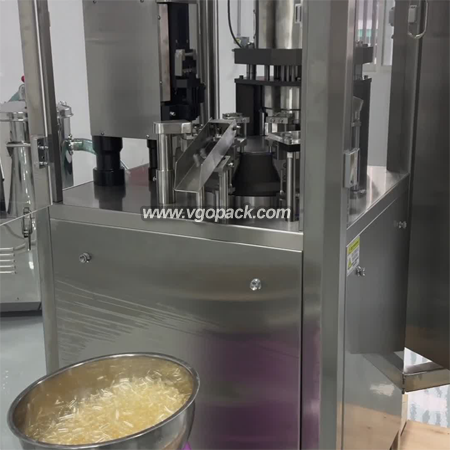

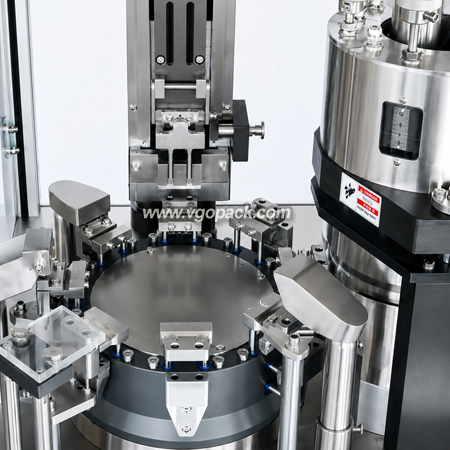

Automatic Capsule Filling Machine

Model：VGO-JN200

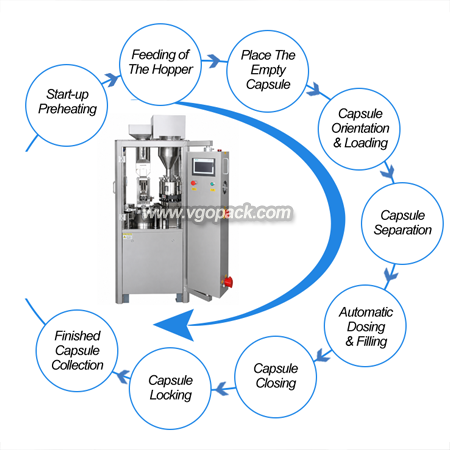

This system is designed for filling various powder materials into empty capsule shells. It automatically completes the dosing, filling, capsule closing, and locking processes.

Get Price

Key Features:



1. Touching-Screen, PLC program control panel with LCD.

2. Capsule vacuum positioned mechanism to make the capsule qualified over 99%.
3. Removable powder hopper for cleaning and easy auger adjustment, easy to change fill weights.
4. Easy speed selection and closed capsule length adjustment.
5. Electrical Appliance control system approved to CE, and international standard.
6. Quick and accurate change part set-up, easy to remove rotary table and ring carrier assembly.
7. Fully enclosed dosing stations and rotating table for integration of the whole capsule filling plants.
8. Large cam mechanism keeps the rotating table of mold together with the whole equipment running with balance, and completely guarantees the machine operating with highest precision and accuracy.



Model No.

Model 200

Capacity

200 capsules/min

Filling Type

Powder, Pallet

No. of Dose/Holes of Each Mold

2

Suitable for Capsule

00#, 0#, 1#, 2#, 3#, 4#

Filling Error

±3% - ±4%

Noise

≤75dB（A）

Voltage

380V 50Hz 3P

Total Power

3.75Kw

Overall Weight

600Kg

Gross Weight

650Kg

Machine Dimension

750mm. (L) x 680mm(W) x 1700mm(H)

Packing Dimension

1600mm. (L) x 1050mm(W) x 1900mm(H)

This system is designed for filling various powder materials into empty capsule shells. It automatically completes the dosing, filling, capsule closing, and locking processes.

1. One year quality warrant if no human damage.

2. OEM service, design service and buyer label is offered.

3. Online technical support service.

4. Warmly welcome to visit our factory.
