Model：VGO-V320-C4
This system is suitable for a wide range of capsule products, such as dietary supplements, vitamins, herbal capsules, softgels, and other nutraceutical capsules.
- Single-type capsules (Vitamin, Mineral, Herbal, Nutritional, etc.)
- Multi-ingredient capsules (Combination Supplements, Omega-3, Probiotics, etc.)
- Softgel capsules (Fish Oil, Plant Oil, Liquid-Filled Capsules, etc.)
- Functional capsules (Immune Support, Digestive Health, Joint Health, Energy Boost, etc.)
- Pharmaceutical-style capsules (Non-prescription capsules for research or health purposes)
- Training or sample capsules (Small packs for trials, product sampling)
- Other regular-shaped capsule products
- And other solid or semi-solid material counting/ weighing and packing.
1. Machine with automatic function, such as feeding, counting, filling, sealing, cutting, printing the date information and cutting the easy tearing notch.

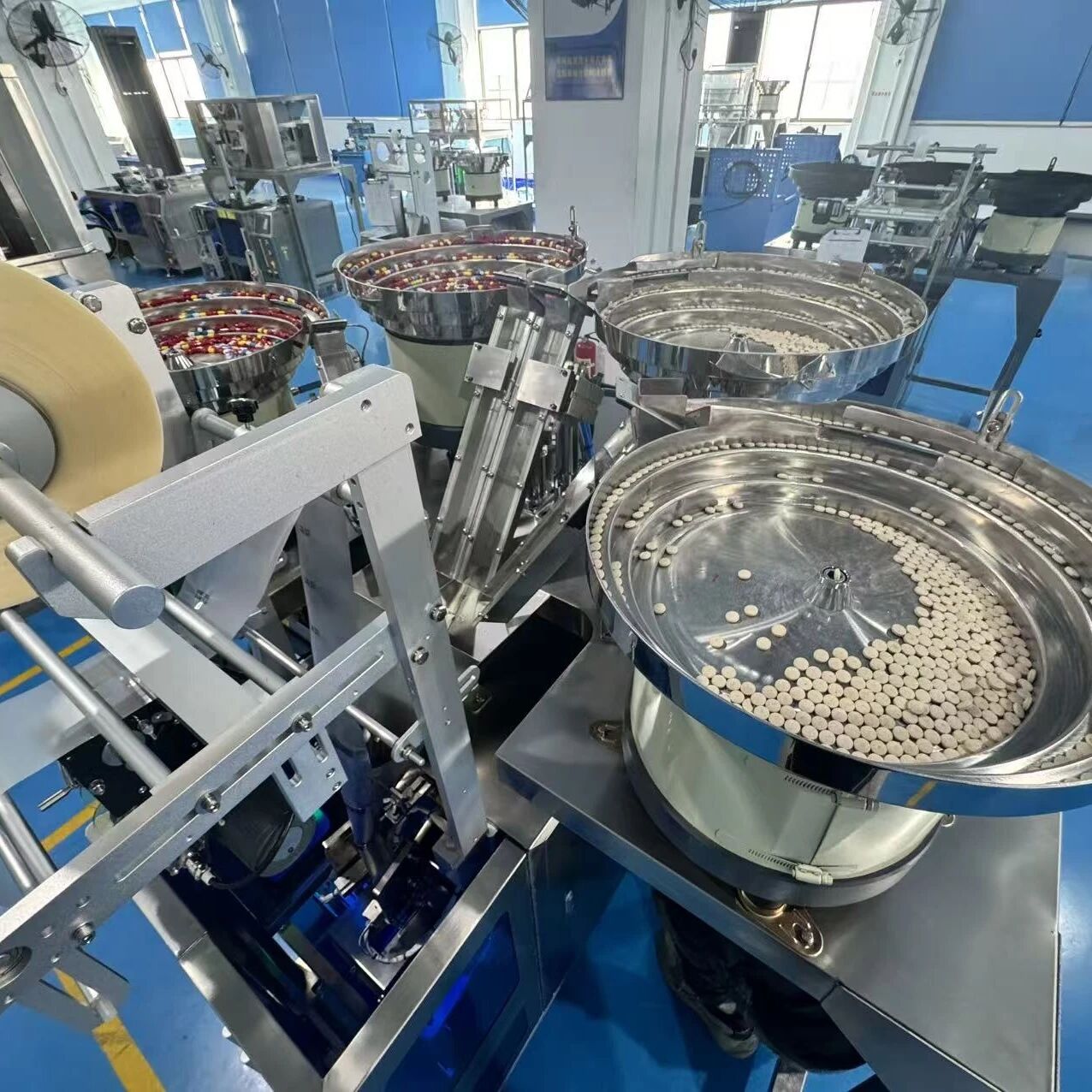

2. Machine with counting systems, vibration bowls & counting bowls could customized from 1 to 48 bowls.
3. Each machine are customized, efficient, flexible, reliable, low maintenance, productive, safe, pneumatic system, reliable working and convenient maintenance.
4. With Mitsubishi PLC control, the length of the bag can be set and cut on one step, saving time and film.
5. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
6. Temperature independent PID control, more suitable for packing different materials.
7. Positioned stop function, without sticking knife or wasting film.
8. All control is realized through software, easy for function adjusting and technical upgrade.
9. Touch screen easy and quick setting and operation.
10. It can count and pack the same item or mixed items into the package.
|
Machine Model |
VGO-V260 |
VGO-V280 |
VGO-V320 |
VGO-V520 |
VGO-P250 |
|
Bag Style |
Pillow Bag, 3 Side Seal Bag |
3 Side Seal Bag, 4 Side Seal Bag |
Pillow Bag, 3 Side Seal Bag |
Pillow Bag |
Premade Bag |
|
Film Width |
Max. 320 mm |
Max. 180 mm |
Max. 320 mm |
Max. 520 mm |
|
|
Bag Length |
Max. 280 mm |
Max. 145 mm |
Max. 280 mm |
Max. 350 mm |
100-250 mm |
|
Bag Width |
70-150 mm |
50-90 mm |
70-150 mm |
140-250 mm |
80-180 mm |
|
Width of Edge |
10 mm |
10 mm |
10 mm |
10 mm |
|
|
Packing Speed |
70-150 bags/min |
10-25 bags/min |
10-80 bags/min |
4-10 bags/min |
10-20 bags/min |
|
Machine Weight |
280 kgs |
300 kgs |
300 kgs |
450 kgs |
350 kgs |
|
Sealing |
Straight/ Textured/ Plain |
Straight/ Textured/ Plain |
Straight/ Textured/ Plain |
Straight/ Textured |
|
|
Cutting |
Serrated Cutter, Dense Serrated Cutter |
Serrated Cutter, Flat Cutter |
Serrated Cutter, Dense Serrated Cutter |
Serrated Cutter |
|
|
Dimensions (mm) |
1150 (L) × 720 (W) × 1465 (H) |
1000 (L) × 1200 (W) × 1665 (H) |
1818 (L) × 800 (W) × 1619 (H) |
4540 (L) × 960 (W) × 2750 (H) |
1100 (L) × 900 (W) × 860 (H) |
|
Air Consumption |
0.4-0.8 MPa |
0.4-0.8 MPa |
0.4-0.8 MPa |
0.4-0.8 MPa |
0.4-0.8 MPa |
|
Packaging Material |
Co-extrusion PE film, Heat Sealable Laminated Film such as OPP, CPP, PE |
Premade Bag |
|||
|
Power |
Single-Phase 220V, 50/60HZ |
||||
|
Machine Frame |
Stainless Steel #201,Stainless Steel #304 |
||||
This system is suitable for a wide range of capsule products, such as dietary supplements, vitamins, herbal capsules, softgels, and other nutraceutical capsules.
- Single-type capsules (Vitamin, Mineral, Herbal, Nutritional, etc.)
- Multi-ingredient capsules (Combination Supplements, Omega-3, Probiotics, etc.)
- Softgel capsules (Fish Oil, Plant Oil, Liquid-Filled Capsules, etc.)
- Functional capsules (Immune Support, Digestive Health, Joint Health, Energy Boost, etc.)
- Pharmaceutical-style capsules (Non-prescription capsules for research or health purposes)
- Training or sample capsules (Small packs for trials, product sampling)
- Other regular-shaped capsule products
- And other solid or semi-solid material counting/ weighing and packing.
