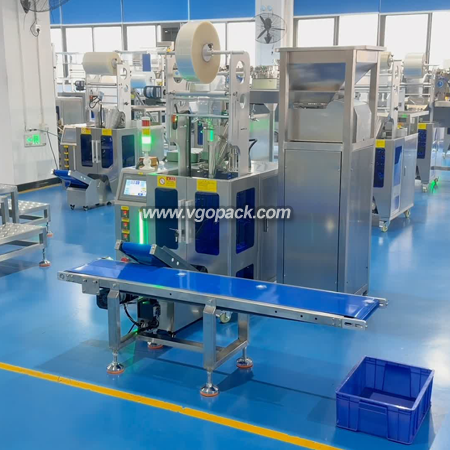

Model：VGO-V320-C1
This system is suitable for a wide range of household and daily-use products, such as laundry detergent powder, cleaning powder, detergent blocks, cleaning tablets, and other household cleaning products.
- Laundry detergent powder
- Cleaning powder
- Detergent blocks
- Laundry tablets
- Dishwasher tablets
- Cleaning tablets
- Toilet cleaning blocks
- Deodorizing products
- Other household cleaning products

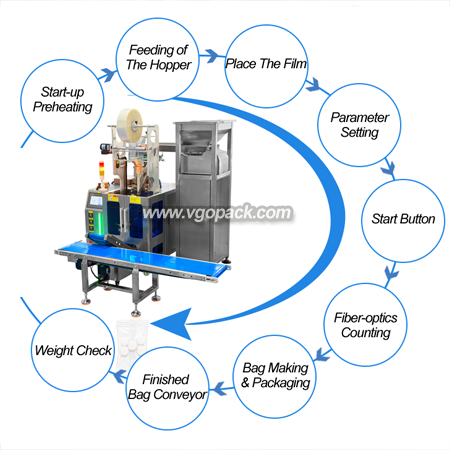

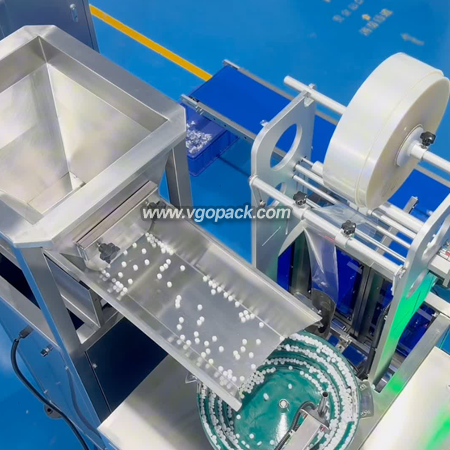

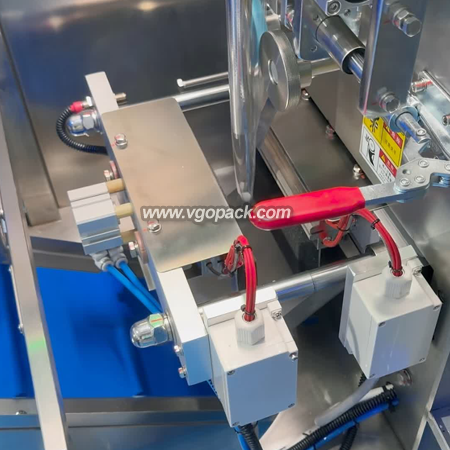

1. Machine with automatic function, such as feeding, counting, filling, sealing, cutting, printing the date information and cutting the easy tearing notch.

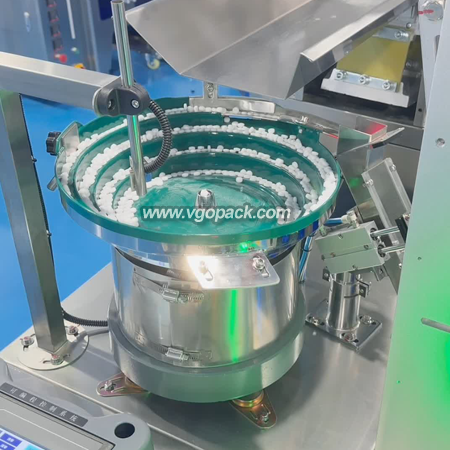

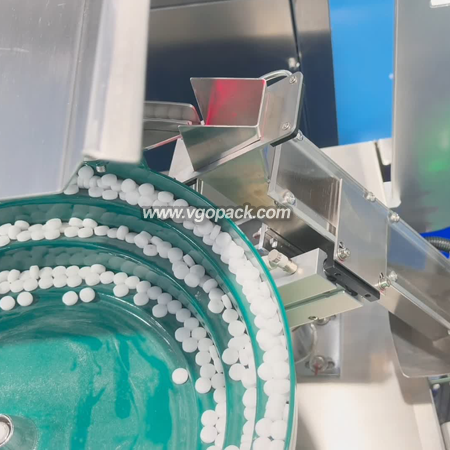

2. Machine with counting systems, vibration bowls & counting bowls could customized from 1 to 48 bowls.
3. Each machine are customized, efficient, flexible, reliable, low maintenance, productive, safe, pneumatic system, reliable working and convenient maintenance.
4. With Mitsubishi PLC control, the length of the bag can be set and cut on one step, saving time and film.
5. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
6. Temperature independent PID control, more suitable for packing different materials.
7. Positioned stop function, without sticking knife or wasting film.
8. All control is realized through software, easy for function adjusting and technical upgrade.

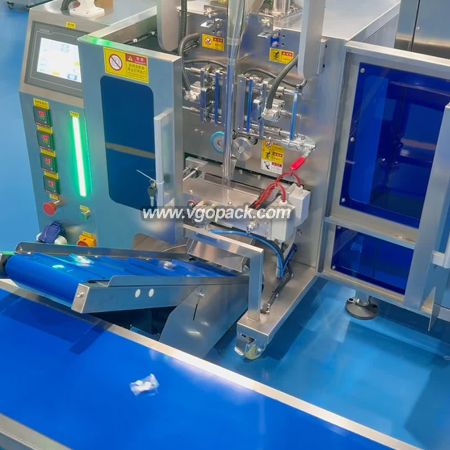

9. Touch screen easy and quick setting and operation.
10. It can count and pack the same item or mixed items into the package.
|
Machine Model |
Model VGO-V260 |
Model VGO-V280 |
Model VGO-V320 |
Model VGO-V520 |
Model VGO-P250 |
|
Bag Style |
Pillow Bag, Three Side Seal Bag |
3 Side Seal Bag, 4 Side Seal Bag |
Pillow Bag, 3 Side Seal Bag |
Pillow Bag |
Premade Bag |
|
Film Width |
Max. 320 mm |
Max. 180 mm |
Max. 320 mm |
Max. 520 mm |
\ |
|
Bag Length |
Max. 280 mm |
Max. 145 mm |
Max. 230 mm |
Max. 300 mm |
100-250 mm |
|
Bag Width |
70-150 mm |
50-90 mm |
70-150 mm |
140-250 mm |
80-180 mm |
|
Width of Edge |
10 mm |
10 mm |
10 mm |
10 mm |
\ |
|
Packing Speed |
70-150 bags/min |
10-25 bags/min |
10-80 bags/min |
4-10 bags/min |
10-20 bags/min |
|
Machine Weight |
280 kgs |
300 kgs |
300 kgs |
450 kgs |
350 kgs |
|
Sealing |
Straight/ Textured/ Plain |
Straight/ Textured/ Plain |
Straight/ Textured/ Plain |
Straight/ Textured |
\ |
|
Cutting |
Serrated Cutter, Dense Serrated Cutter |
Serrated Cutter, Flat Cutter |
Serrated Cutter, Dense Serrated Cutter |
Serrated Cutter |
\ |
|
Dimensions (mm) |
1150 (L) × 720 (W) × 1465 (H) |
1000 (L) × 1200 (W) × 1665 (H) |
1818 (L) × 800 (W) × 1619 (H) |
4540 (L) × 960 (W) × 2750 (H) |
1100 (L) × 900 (W) × 860 (H) |
|
Air Consumption |
0.4-0.8 MPa |
0.4-0.8 MPa |
0.4-0.8 MPa |
0.4-0.8 MPa |
0.4-0.8 MPa |
|
Packaging Material |
Co-extrusion PE film, Heat Sealable Laminated Film such as OPP, CPP, PE |
Premade Bag |
|||
|
Power |
Single-Phase 220V, 50/60HZ |
||||
|
Machine Frame |
Stainless Steel #201,Stainless Steel #304 |
||||
This system is suitable for a wide range of household and daily-use products, such as laundry detergent powder, cleaning powder, detergent blocks, cleaning tablets, and other household cleaning products.
- Laundry detergent powder
- Cleaning powder
- Detergent blocks
- Laundry tablets
- Dishwasher tablets
- Cleaning tablets
- Toilet cleaning blocks
- Deodorizing products
- Other household cleaning products
1. One year quality warrant if no human damage
2. OEM service, design service and buyer label is offered
3. Online technical support service
4. Warmly welcome to visit our factory
