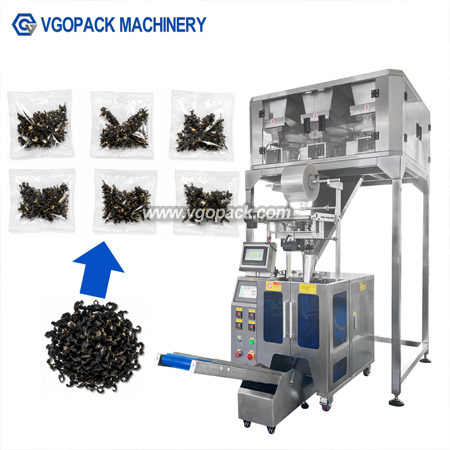

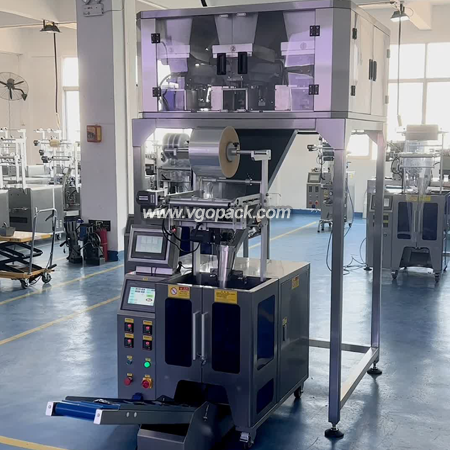

Model：VGO-EW6
This system is suitable for automatic weighing and packing of various tea products, such as loose tea, herbal tea, flower tea, and tea bags. It can handle different types of tea materials with stable performance and high packing accuracy.
- Tea products (Green Tea, Black Tea, Oolong Tea, White Tea, Pu-erh Tea, etc.)
- Herbal tea (Rose Tea, Chrysanthemum Tea, Mint Tea, Herbal Blends, etc.)
- Flower tea (Jasmine Tea, Flower Buds, Dried Flowers, etc.)
- Tea accessories and ingredients (Tea Leaves, Tea Pieces, Dried Fruits, Herbs, Spices, etc.)
- Tea bag products (Triangle Tea Bags, Pyramid Tea Bags, Inner and Outer Tea Bag Packaging, etc.)
- Healthy beverage ingredients (Goji Berry, Red Dates, Lemon Slices, Other Dried Ingredients, etc.)
- Other regular shape and granular tea materials
- And other solid material weighing and packing.

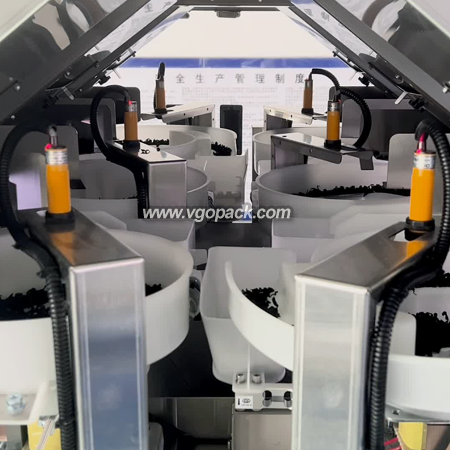

1. Six-Head Configuration:
Features six weighing heads for simultaneous or alternating operations, enhancing productivity and throughput.
2. Flexible Weighing Options:
Supports electronic spiral scales with maximum load capacities of 50 grams, 100 grams and 500 grams. (Customized are available)
Allows for setting different packaging weights and quantities, catering to various material types and packaging requirements.

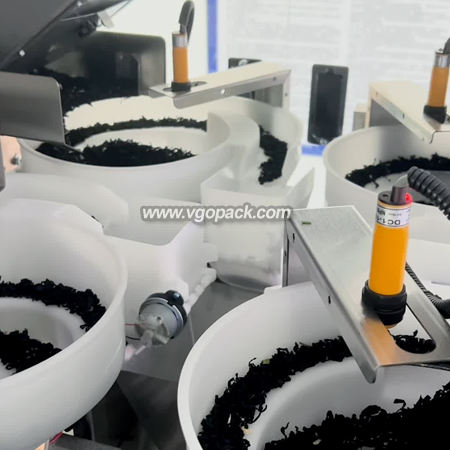

3. Customizable Weighing Bucket:
Each weighing bucket can be independently controlled, providing flexibility in operation and material handling.

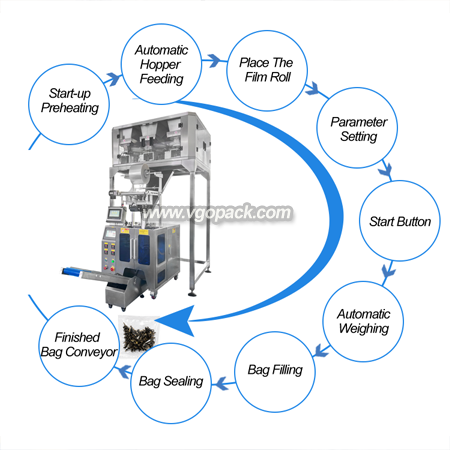

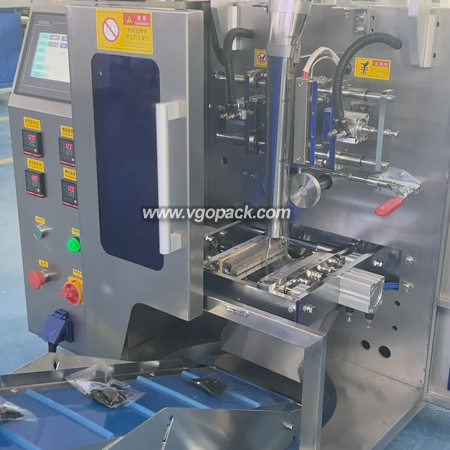

4. Automated Packaging Process:
Efficiently performs bag making, sealing, cutting, and conveying, streamlining the packaging workflow and reducing manual labor.
5. User-Friendly Interface:
Equipped with intuitive controls for easy setup and operation.
Simplifies adjustments and monitoring, ensuring smooth and efficient packaging processes.
6. High Accuracy and Reliability:
Delivers precise weight measurements and consistent packaging quality.
Designed for reliable performance with minimal downtime.
|
Machine Model |
VGO-V320-EW6 |
VGO-V520-EW6 |
VGO-MP250-EW6 |
|
Electronic Weigher |
Six Heads |
||
|
Maximum Load Capacity |
50 grams / 100 grams / 500 grams / customized |
||
|
Accuracy |
± 0.2 grams |
||
|
Bag Style |
Pillow Bag,Three Side Seal Bag |
Premade Bag |
|
|
Film Width |
Max. 320 mm |
Max. 520 mm |
- |
|
Bag Length |
Max. 280 mm |
Max. 350 mm |
100-250 mm |
|
Bag Width |
70-150 mm |
140-250 mm |
80-180 mm |
|
Width of Edge |
10 mm |
10 mm |
- |
|
Packing Speed |
15-40 bags/min |
5-15 bags/min |
5-20 bags/min |
|
Sealing |
Straight/ Textured/ Plain |
Straight/ Textured |
- |
|
Cutting |
Serrated Cutter, Dense Serrated Cutter |
Serrated Cutter |
- |
|
Air Consumption |
0.4-0.8 MPa |
||
|
Packaging Material |
Co-extrusion PE film, Heat Sealable Laminated Film such as OPP, CPP, PE |
Premade Bag |
|
|
Power |
Single-Phase 220V, 50/60HZ |
||
|
Machine Frame |
Stainless Steel #201,Stainless Steel #304 |
||
This system is suitable for automatic weighing and packing of various tea products, such as loose tea, herbal tea, flower tea, and tea bags. It can handle different types of tea materials with stable performance and high packing accuracy.
- Tea products (Green Tea, Black Tea, Oolong Tea, White Tea, Pu-erh Tea, etc.)
- Herbal tea (Rose Tea, Chrysanthemum Tea, Mint Tea, Herbal Blends, etc.)
- Flower tea (Jasmine Tea, Flower Buds, Dried Flowers, etc.)
- Tea accessories and ingredients (Tea Leaves, Tea Pieces, Dried Fruits, Herbs, Spices, etc.)
- Tea bag products (Triangle Tea Bags, Pyramid Tea Bags, Inner and Outer Tea Bag Packaging, etc.)
- Healthy beverage ingredients (Goji Berry, Red Dates, Lemon Slices, Other Dried Ingredients, etc.)
- Other regular shape and granular tea materials
- And other solid material weighing and packing.
1. One year quality warrant if no human damage.
2. OEM service ,design service and buyer label is offered.
3. Online technical support service.
4. Warmly welcome to visit our factory.
