Gummy candy is one of the most popular confectionery products in the market. From fruit gummies and jelly beans to marshmallows, chewy candies, chocolate-coated nuts, and seasonal candies, different gummy products require different packaging solutions.
For candy manufacturers, accurate quantity, stable sealing, good package appearance, and efficient production are very important. Manual counting and packing may be suitable for small batches, but when the order quantity increases, it can become slow, labor-intensive, and easy to make mistakes.
A suitable gummy packaging machine can help improve packing efficiency, reduce manual work, and make each finished package more consistent and professional.
What Is a Gummy Packaging Machine?

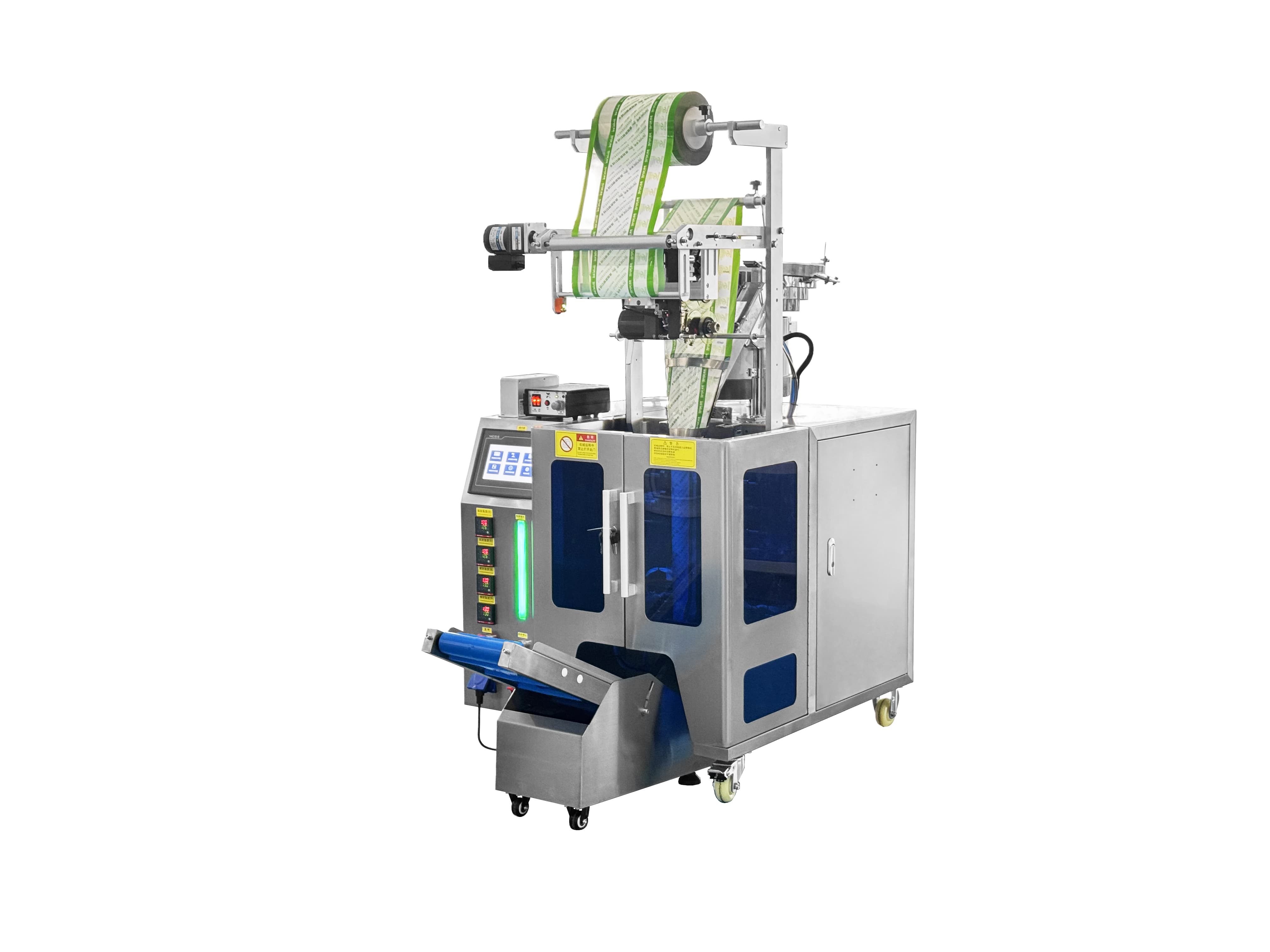

A gummy packaging machine is an automatic packaging system designed to count, fill, seal, cut, and output gummy candy packages.
For gummy candy packaging, the machine usually uses vibration feeders or counting bowls to separate and count the candy pieces. After the required quantity is reached, the gummies are discharged into the packing machine. The packing machine then forms the bag from roll film, fills the gummies, seals the bag, cuts it, and outputs the finished package.
Depending on the customer's product, package quantity, bag style, and speed requirement, VGOPACK can provide different gummy candy counting and packing solutions, such as single bowl, 2 vibration feeders, 3 vibration feeders, and 5 vibration feeders counting packing machines.
What Products Can Be Packed?
VGOPACK gummy packaging machines are suitable for a wide range of soft candy and confectionery products, including:
- Gummies
- Jelly Beans
- Marshmallows
- Chewy Candies
- Chocolate-Coated Nuts
- Individually Wrapped Candies
- Chocolate Products and Confectionery
- Other Similar Small Candy Products
Before confirming the final machine solution, it is recommended to check the candy size, shape, surface condition, stickiness, and quantity per bag. Some gummy candies may be soft or slightly sticky, so the feeding method should be designed according to the actual product.
Why Gummy Candy Manufacturers Need Automatic Packaging Machines
Gummy candy packaging usually requires accurate quantity control and attractive finished bags. If the products are counted manually, workers may easily make mistakes, especially during long production hours.
An automatic gummy packaging machine can help solve several common problems.
1. Improve Packing Efficiency
The machine can automatically complete feeding, counting, filling, bag forming, sealing, cutting, and finished bag output. This reduces repeated manual work and helps improve daily production capacity.
2. Reduce Counting Errors
For gummy products packed by quantity, such as 5 pcs, 10 pcs, 20 pcs, or mixed candy packs, automatic counting can help make each package more consistent.
3. Make Packages More Professional
Automatic bag forming, sealing, and cutting can make the finished bags neater and more uniform. This is important for retail candy packaging, promotional packs, sample packs, and gift packs.
4. Support Different Candy Products
The machine can be customized according to different gummy shapes, sizes, and packing quantities. It can be used for single-product packaging or mixed candy packaging.
5. Reduce Labor Cost
Compared with manual counting and bag sealing, automatic packaging helps reduce labor pressure and makes the production process easier to manage.
Main Types of Gummy Packaging Machines
Different gummy candy businesses may need different packaging solutions. The best machine depends on product size, quantity per bag, bag size, packing speed, and budget.
1. Single Bowl Counting Packing Machine for Gummy Candy
A single bowl counting packing machine is suitable for customers who pack one type of gummy candy and do not require very high speed.
The vibration bowl feeds and separates the gummy candy, then the counting system counts the required quantity and sends it into the packing machine.
Suitable For
- One type of gummy candy
- Small to medium production
- Simple quantity packaging
- Customers who want an automatic solution with lower machine cost
Advantages
- Compact and practical
- Easy to operate
- Suitable for fixed quantity packaging
- Good choice for small and medium candy manufacturers

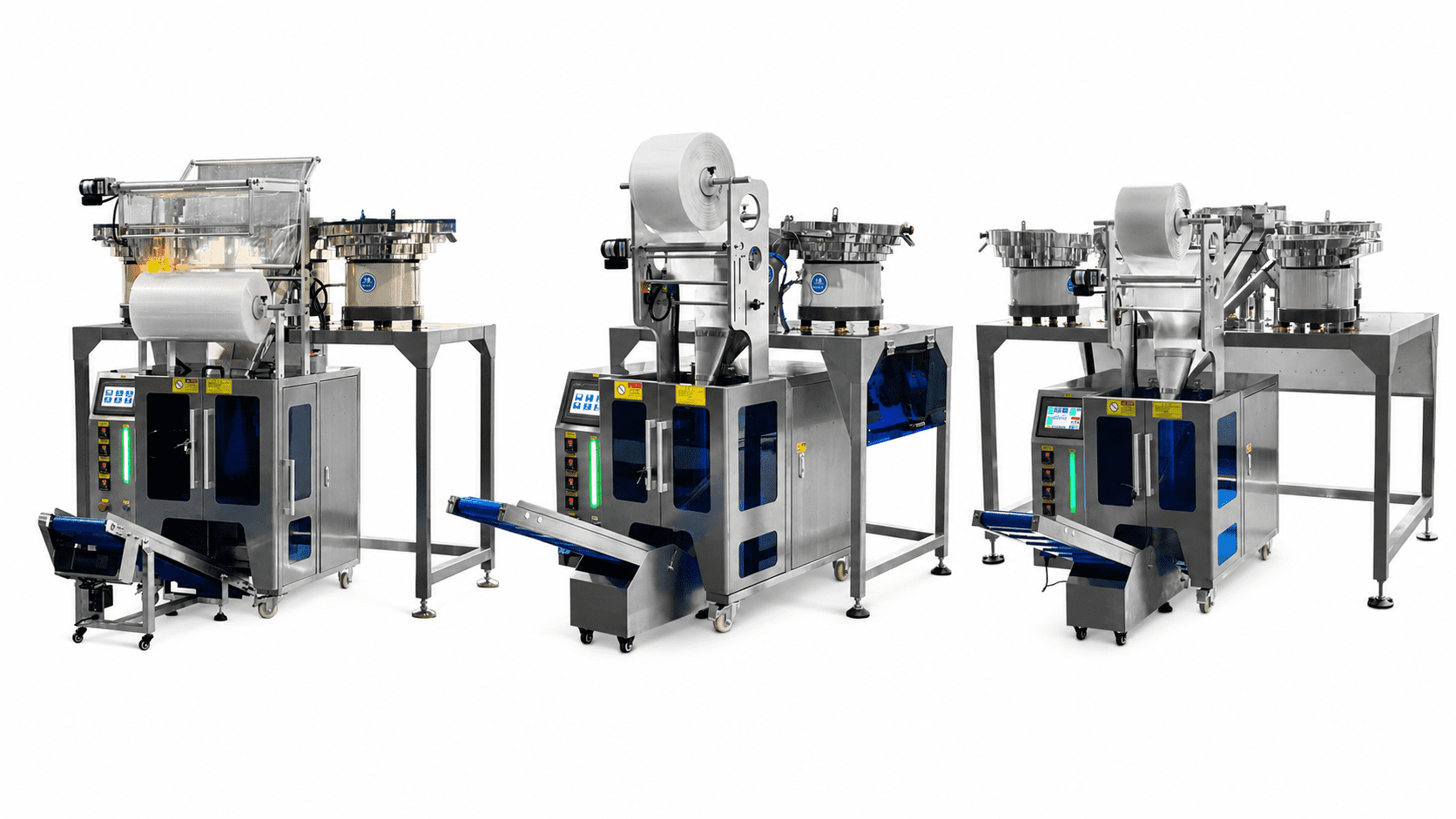

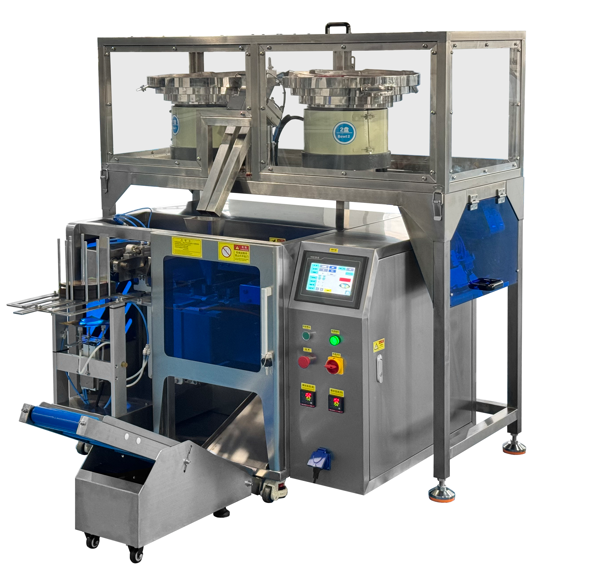

2. Multi Vibration Feeders Counting Packing Machine (2 or More Feeders)
A multi-feeder gummy packaging machine includes 2, 3, 5, or more vibration feeders. It is suitable for customers who need higher efficiency or want to pack multiple types of candy into one package.
Each vibration feeder can count one type of product. The machine can combine different candy types, flavors, or colors into one bag according to the required quantity.
Suitable For
- Mixed gummy packs
- Multi-flavor candy packaging
- Medium to higher production needs
- Customers who need more flexibility
Advantages
- Higher efficiency compared to single bowl machines
- Supports mixed product packaging
- Flexible for different product combinations
- Suitable for growing and large-scale candy businesses
- Can be customized with different feeder quantities
3. Premade Bag Packing Machine for Gummy Candy
A premade bag packing machine is suitable for customers who want to use ready-made bags instead of roll film. It can be combined with manual feeding or automatic counting systems depending on the product and speed requirement.
This solution is often used when customers need better bag appearance, special bag shapes, or retail-ready packaging.

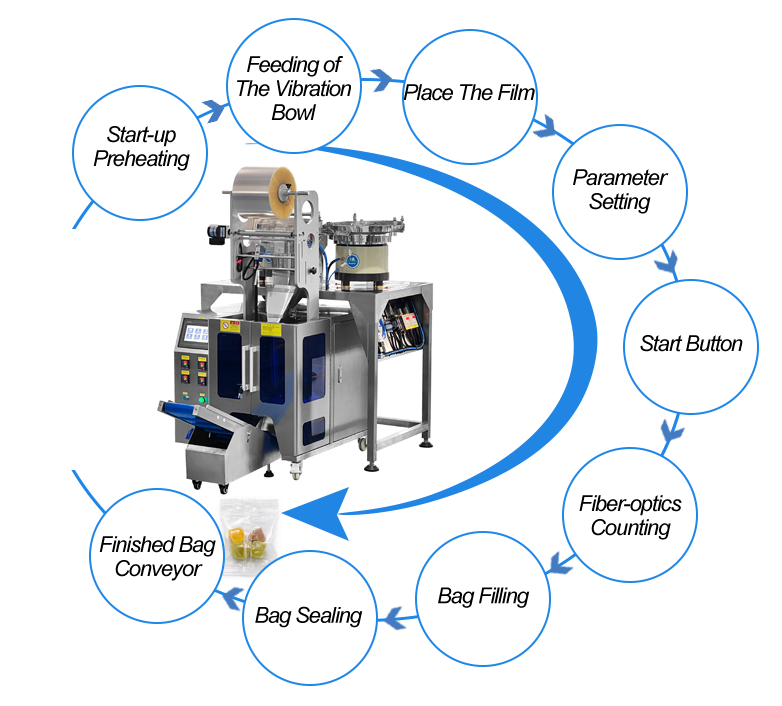

Machine Working Process
The gummy candy counting and packing machine follows an automatic working process from machine preparation to finished bag output. The whole process is simple, continuous, and easy for operators to manage.
1. Start-Up Preheating
Before production starts, the operator turns on the machine and allows the sealing system to preheat. Proper preheating helps ensure stable sealing temperature and good sealing quality during packaging.

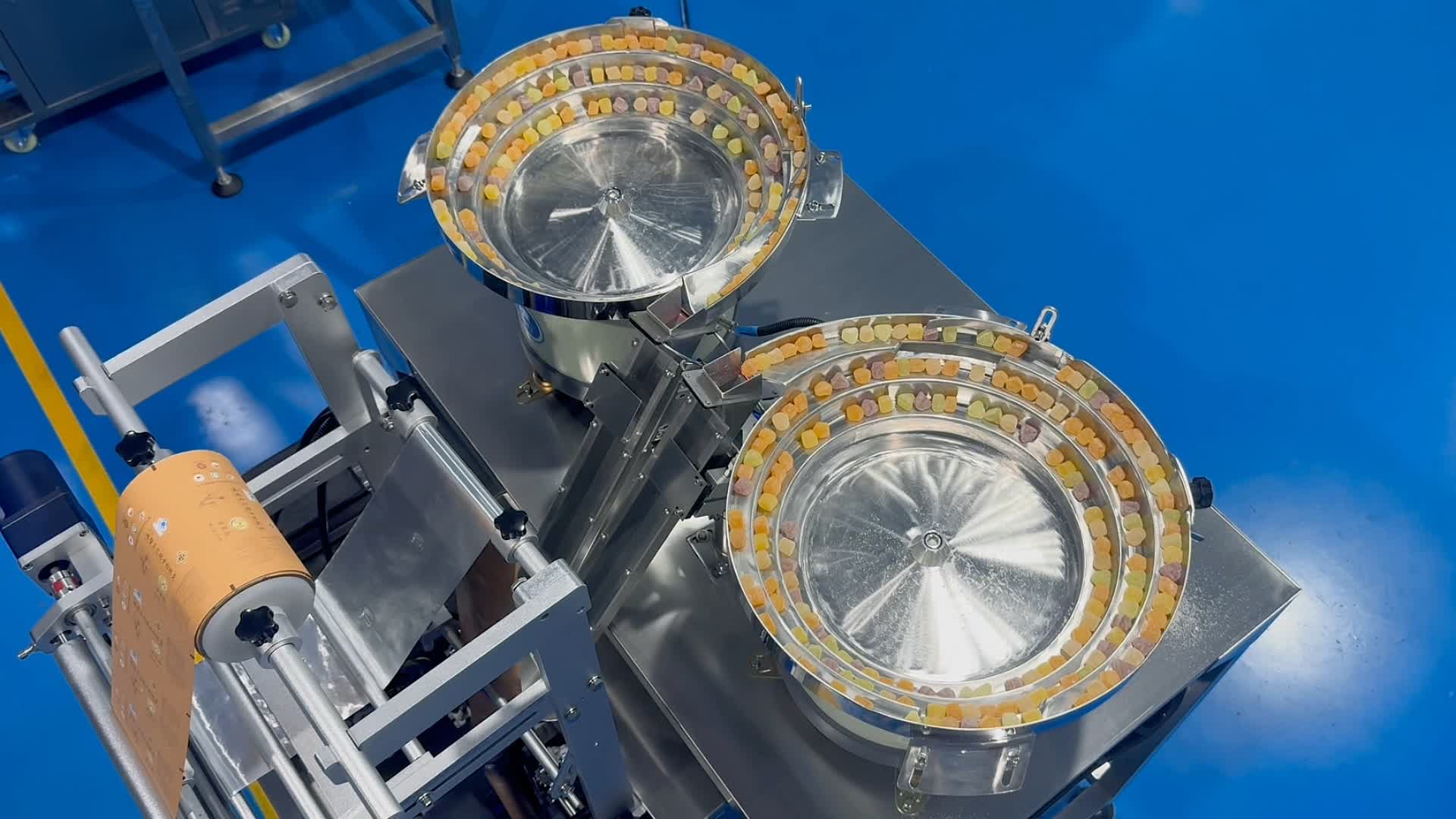

2. Feeding of the Vibration Bowl
Gummy candies are loaded into the vibration bowl or vibration feeders. The vibration bowl feeds the products smoothly and separates them before counting. For multi-feeder machines, each vibration bowl can feed one type of candy, flavor, or color.
3. Place the Film
The operator installs the roll film onto the packing machine. The film is pulled through the forming area and prepared for automatic bag forming. Printed film can also be used with photoelectric eye tracking.
4. Parameter Setting
The operator sets the required parameters on the touch screen, such as bag length, packing speed, sealing temperature, counting quantity, and other working settings. The parameters can be adjusted according to product size, bag size, and packing requirement.
5. Start Button
After the film, products, and parameters are ready, the operator presses the start button. The machine then begins automatic operation.
6. Fiber-Optics Counting
The gummy candies pass through the counting area and are counted by the fiber-optics counting system. When the preset quantity is reached, the counted gummies are discharged into the packing machine.
7. Bag Filling
The counted gummy candies drop into the formed bag through the filling tube. The filling process is synchronized with the bag forming system to ensure smooth and accurate product filling.
8. Bag Sealing
After filling, the machine seals the bag automatically. The sealing system creates clean and firm seals to help keep the finished package neat and secure.
9. Finished Bag Conveyor
After sealing and cutting, the finished gummy candy bags are discharged onto the finished bag conveyor. The operator can collect the finished packages or connect the machine with other optional devices for the next production step.
This automatic workflow helps improve packing efficiency, reduce manual operation, and ensure stable counting and packaging quality for gummy candy products.
Common Bag Styles for Gummy Packaging
Different gummy candy products can use different bag styles. The final bag style depends on the product, package quantity, film material, and market positioning.
Common bag styles include:
- Back Seal Bag
- 3-Side Seal Bag
- Premade Bag
How to Choose the Right Gummy Packaging Machine
Before choosing a gummy packaging machine, candy manufacturers should confirm several important details.
1. Product Type
Different gummy candies have different shapes, sizes, and surface conditions. Some are dry and easy to feed, while others may be sticky or soft. The feeding system should be designed according to the actual product.
2. Quantity Per Bag
The required quantity per bag directly affects machine speed and configuration. For example, packing 5 gummies per bag and 50 gummies per bag will require different counting time.
3. Single Product or Mixed Product
If each bag contains only one type of gummy candy, a single bowl or 2-feeder machine may be enough. If the bag contains several flavors, colors, or candy types, a 3-feeder or 5-feeder system may be more suitable.
4. Required Packing Speed
Higher speed usually requires more feeding channels. If production volume is small, a simple machine may be enough. If production volume is high, a multi-feeder system is recommended.
5. Bag Style
The customer should confirm whether they need pillow bags, three-side seal bags, four-side seal bags, premade bags, or stand-up pouches. Different bag styles may require different machine structures.
6. Film or Bag Material
For roll film machines, the film width, thickness, material, and sealing performance should be checked. For premade bag machines, the bag size, opening method, and sealing area should be confirmed.
7. Need Date Printing or Not
For retail candy packaging, date printing is often required. A date printer can be added to print production date, batch number, or expiry date.
Why Choose VGOPACK?
VGOPACK provides customized counting and packing solutions for gummy candy, soft candy, jelly beans, marshmallows, chewy candy, chocolate products, and other confectionery products.
For gummy candy packaging projects, we can design the machine according to the customer’s product size, shape, quantity per bag, bag type, and speed requirement. Whether you need a single bowl machine, 2-feeder machine, 3-feeder machine, 5-feeder machine, premade bag solution, or customized packing line, VGOPACK can help choose a suitable solution.
VGOPACK focuses on practical machine design, stable counting, flexible configuration, and easy operation. Our goal is to help candy manufacturers improve packing efficiency, reduce manual counting errors, and achieve clean, consistent, and attractive finished packages.
Conclusion
Choosing the right gummy packaging machine is important for improving production efficiency and packaging quality.
For simple gummy packaging, a single bowl or 2-feeder counting machine may be enough. For mixed candy packs or higher output requirements, a 3-feeder or 5-feeder counting packing machine can provide better flexibility and efficiency. If the customer needs special bag styles, a premade bag packing machine or customized packaging solution can also be considered.
If you are looking for a gummy packaging machine for your candy business, VGOPACK can help recommend a suitable solution based on your product, package quantity, bag style, and production needs.
