Model：VGO-8P200-C2

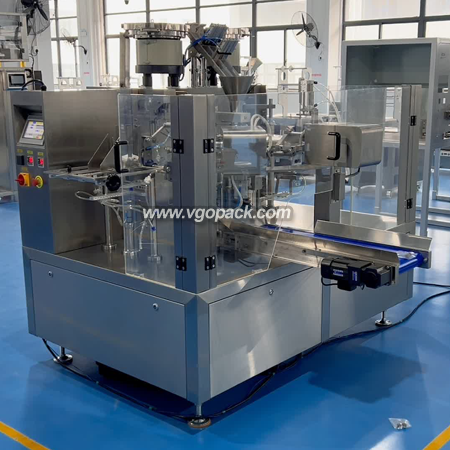

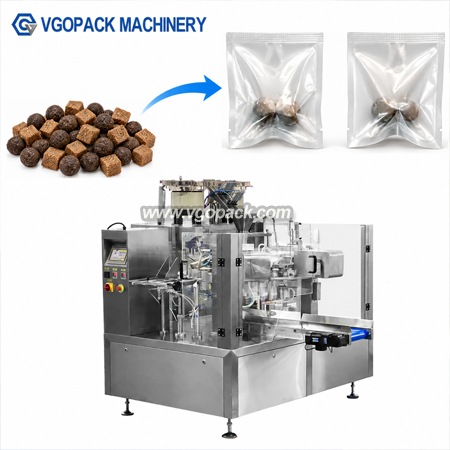

The rotary eight-station premade bag filling packaging machine is a high-efficiency, multifunctional automatic packaging equipment. It can be equipped with various measuring methods, such as electronic combination scales, powder measurers, or liquid pumps. This versatile packaging machine is suitable for products in granule, powder, liquid, and paste forms, all using pre-made stand-up pouches with zippers.
1. Stainless Steel Design: The entire machine is made of 304 stainless steel or food-grade plastic materials.

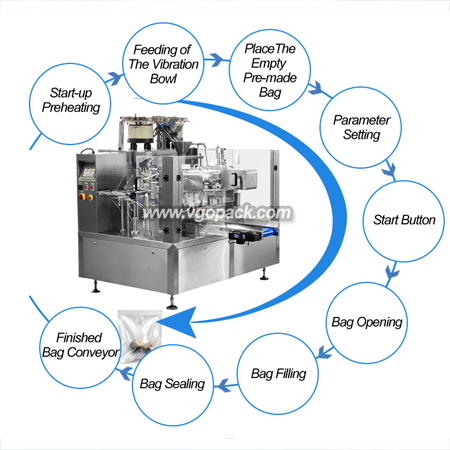

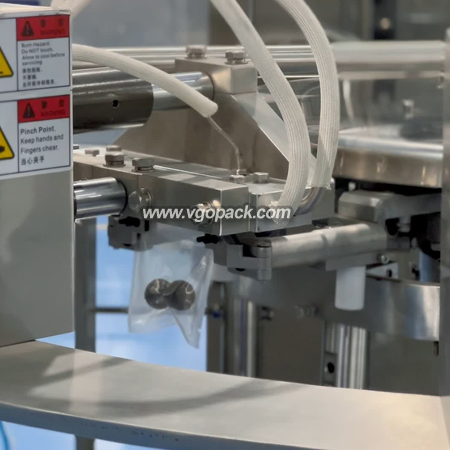

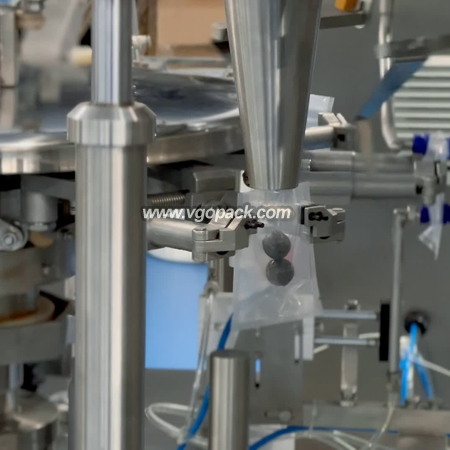

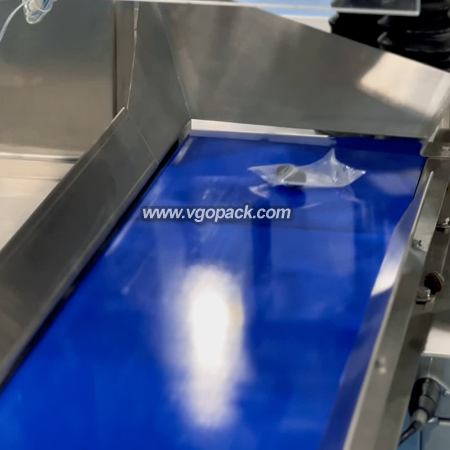

2. Fully Automatic Operation: Automatically completes product feeding, measuring, pouch feeding, coding, filling, air inflation (or air exhaust), sealing, and finished product discharge.
3. User-Friendly HMI: Equipped with an intuitive touchscreen interface for easy and convenient operation.
4. Intelligent Control System: If a pouch fails to open, the subsequent stations will not fill or seal it, preventing waste of packaging materials and products.
5. Easy Pouch Width Adjustment: The pouch width can be quickly adjusted using a handwheel, saving time and labor.
6. Wide Pouch Compatibility: Suitable for various premade pouches, including stand-up pouches, spout pouches, zipper pouches, and more. Can be integrated with electronic weighing systems, powder filling systems, or liquid filling systems to achieve fully automatic packaging.
|
Model |
VGO-8P200-C2 |
|
Counting System |

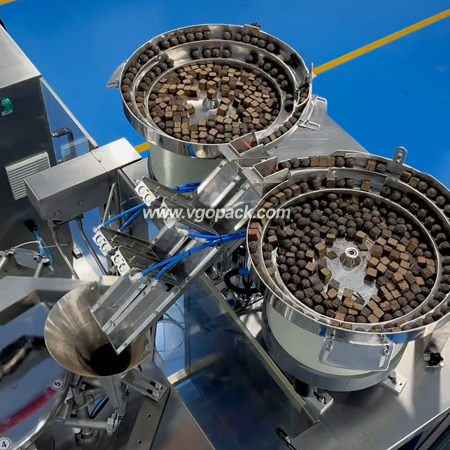

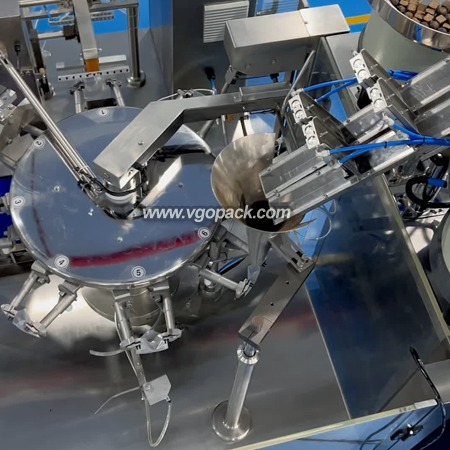

Equipped with 2 vibration bowls |
|
Mechanical Working Station |
8 station |
|
Bag Type |
Stand-up bags, handbags, four-side sealing bags, zipper bags, three-side sealing bags, spout bags, paper bags, etc. |
|
Bag Width |
50-200 mm |
|
Bag Length |
100-400 mm |
|
Packing Speed |
20-60 bags per minute (It depends) |
|
Filling Range |
10g-2500 grams |
|
Size Adjustment |
The rocker controls all workstations to be adjusted together |
|
Noise Decibels |
≤70 decibel |
|
Machine Weight |
1400 kgs |
|
Voltage and Power |
380V 50HZ 9.8KW |
|
Air consumption |
≥0.6 m³/minute |
|
Dimension |
2480×1600×1483mm |
|
Machine Frame |
Exposed and material contact parts are all 304 stainless steel |
|
Transmission and support frame all steel |
Granules: monosodium glutamate, granular drugs, capsules, seeds, chemicals, sugar, chicken essence, melon seeds, nuts, pesticides, fertilizers.
Powdered: milk powder, glucose, monosodium glutamate, seasoning, laundry detergent, chemical raw materials, sugar, pesticides, fertilizers and so on.
Liquid or Paste: detergent, soy sauce, rice vinegar, fruit iuice, curry paste, ketchup, peanut buter, jam, chii sauce, bean paste and other seasonings.
Mixture ingredients: beef cubes with stock, minced meat with ketchup.
Lumpy materials: dried fruits, prepared vegetables, candies, cereals, chocolates, cookies, peanuts and nuts, pickled cabbage, sauerkraut, etc.
Solid Food Products: Candies, Gummies, Chewing Gum, Chocolates, Cookies, Nuts, Dried Fruits, Dried Tofu, Energy Balls and Other Solid Food Products.
1.One year quality warrant if no human damage
2.OEM service, design service and buyer label is offered
3.24 hours/365 days online technical support service
4.Warmly welcome to visit our factory
