2 Heads Auger Weigher Weighing Packing Machine for Ice

Model:VGO-LV720



This machine belongs to the semi-automatic filling and packing machine series, equipped with a combined transparent hopper.

It features a horizontal opening hopper and a lifting working platform.

The auger screw is driven by a servo motor. The machine is made of SUS304 stainless steel and is suitable for filling and packing powder and granular materials, such as milk powder, animal feed, rice flour, white sugar, monosodium glutamate (MSG), solid beverages, glucose, solid pharmaceutical products, and other similar materials.

Features:

1. Low Investment, High Return, and Efficient Production:

Equipped with a PLC control system, imported drivers, and a high-sensitivity touchscreen, the machine features a high level of automation and easy operation.

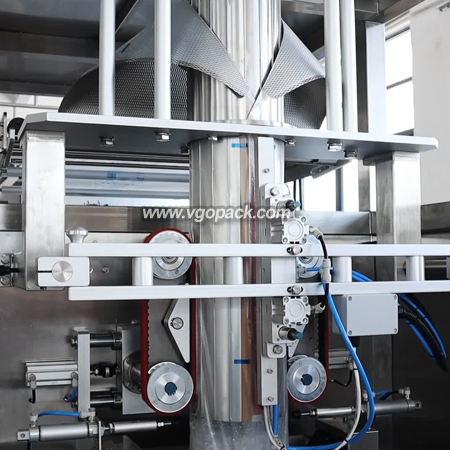

2. Dual Film-Pulling Structure:

Ensures stable film feeding and accurate film pulling. The automatic film alignment system saves time, labor, and packaging film while improving efficiency. Multiple automatic alarm and protection functions help minimize losses and ensure safe operation.

3. Fully Automatic Packaging Process:

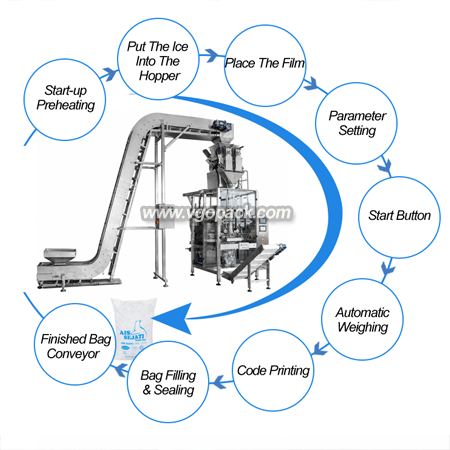

When integrated with a metering system, the machine can automatically complete feeding, bag forming, filling, date printing, gas flushing/exhausting, counting, and finished product conveying.





Main Machine

Model

VGO-LV820

Bag-Making Size

Length: 200–500 mm; Width: 180–400 mm

Packaging Speed

3–30 Bags/min

Max. Film Width

820 mm

Roll Film Thickness

0.04–0.12 mm

Air Consumption

0.8 MPa, 0.5 m³/min

Power Supply

2.2 kW, 220 V, 50 Hz

Machine Dimensions

L1900 × W1440 × H2180 mm

Gross Weight

550 kg

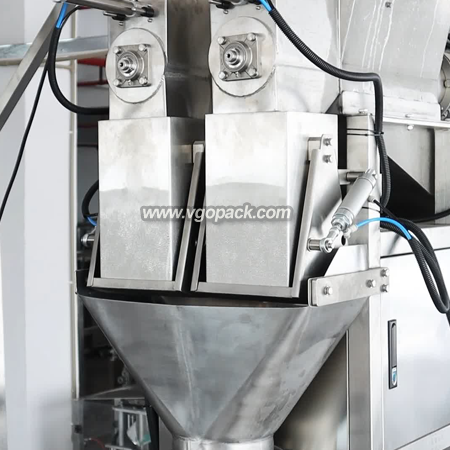

Auger Weigher

Specification Name

2 Heads Auger Weigher

Weighing Range

1–5 kg

Maximum Weighing Capacity

5 kg

Weighing Accuracy

±1–3 g

Maximum Weighing Speed

5–12 Bags/min

Hopper Capacity

25 L

Operating Interface

7-Inch Touch Screen

Power Requirements

220 V, 50 Hz, Single Phase

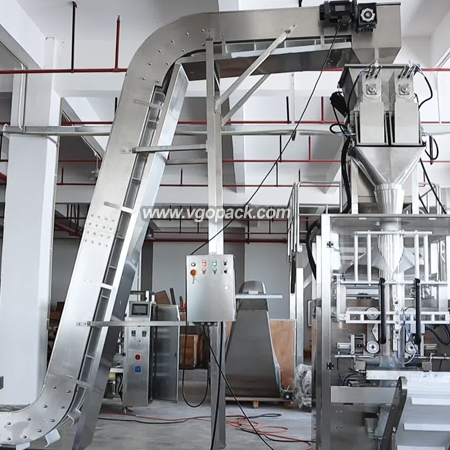

Z-Type Bucket Elevator

Power

1.5 kW

Conveying Capacity

3–6 m³/h

Voltage

380 V

Gross Weight

350 kg

Material

304 Stainless Steel Frame

Output Belt Conveyor

Power

40 W

Conveying Speed

60 Bags/min

Voltage

220 V

Gross Weight

50 kg



This machine belongs to the semi-automatic filling and packing machine series, equipped with a combined transparent hopper.

It features a horizontal opening hopper and a lifting working platform.

The auger screw is driven by a servo motor. The machine is made of SUS304 stainless steel and is suitable for filling and packing powder and granular materials, such as milk powder, animal feed, rice flour, white sugar, monosodium glutamate (MSG), solid beverages, glucose, solid pharmaceutical products, and other similar materials.
