Model：VGO-LV520

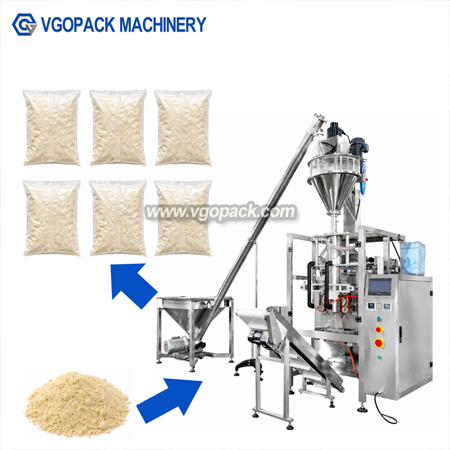

This system is suitable for a wide range of Powder material, such as:
- Food Powder: Milk Powder, Soybean Powder, Corn Flour
- Beverage & Instant Mix: Instant Drink Powder, Fruit Juice Powder, Tea Powder
- Health & Supplement: Collagen Powder, Vitamin Powder, Nutritional Supplement Powder
- Other Powder: Industrial Powder, Pet Nutrition Powder, Agricultural Powder

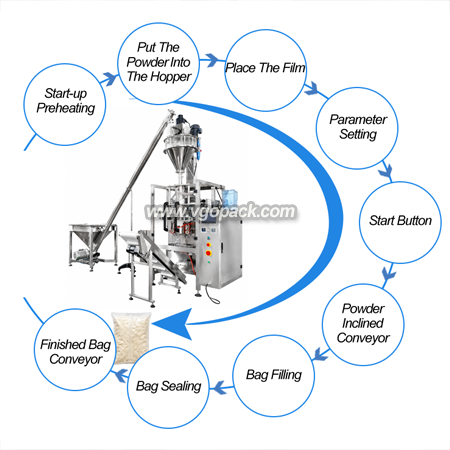

1. Machine with automatic function, such as feeding, filling, sealing, cutting, printing the date information and cutting the easy tearing notch.
2. Each machine are customized, efficient, flexible, reliable, low maintenance, productive, safe, pneumatic system, reliable working and convenient maintenance.
3. With Mitsubishi PLC control, the length of the bag can be set and cut on one step, saving time and film.
4. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.
5. Temperature independent PID control, more suitable for packing different materials.
6. Positioned stop function, without sticking knife or wasting film.
7. All control is realized through software, easy for function adjusting and technical upgrade.

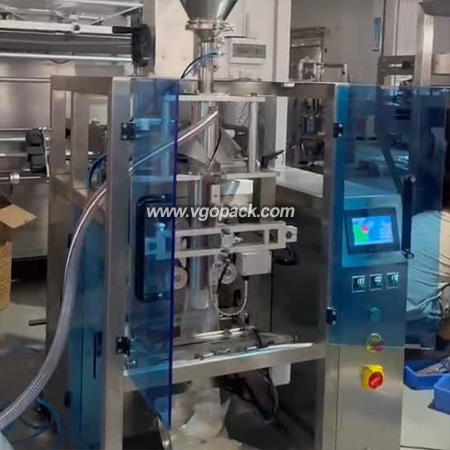

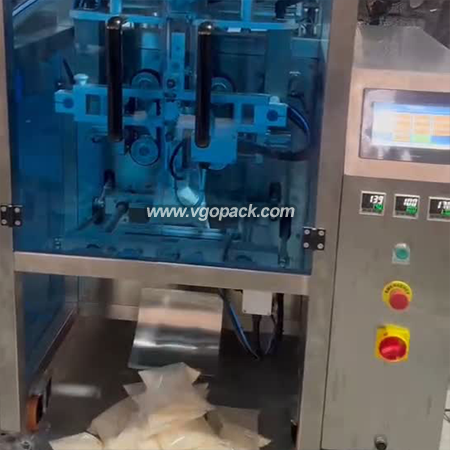

8. Touch screen easy and quick setting and operation.
|
Model |
VGO-LV520 |
|
Bag Length |
80–350mm |
|
Bag Width |
80–250mm |
|
Film Width |
520mm (Max.) |
|
Packing Speed |
20–85 packet/min |
|
Gas Consumption |
0.60m³/min |
|
Air Pressure |
0.65Mpa |
|
Power |
220V AC 50HZ, single phase, 4.0Kw |
|
Packaging Film |
Complex film (OPP/CPP, OPP/PE, PET/PE etc) |
|
Dimension |
1510(L)×1150(W)×1650(H)mm |
|
Net Weight |
630Kg |
This system is suitable for a wide range of Powder material, such as:
- Food Powder: Milk Powder, Soybean Powder, Corn Flour
- Beverage & Instant Mix: Instant Drink Powder, Fruit Juice Powder, Tea Powder
- Health & Supplement: Collagen Powder, Vitamin Powder, Nutritional Supplement Powder
- Other Powder: Industrial Powder, Pet Nutrition Powder, Agricultural Powder
1.One year quality warrant if no human damage
2.OEM service ,design service and buyer label is offered
3.Online technical support service
4.Warmly welcome to visit our factory
