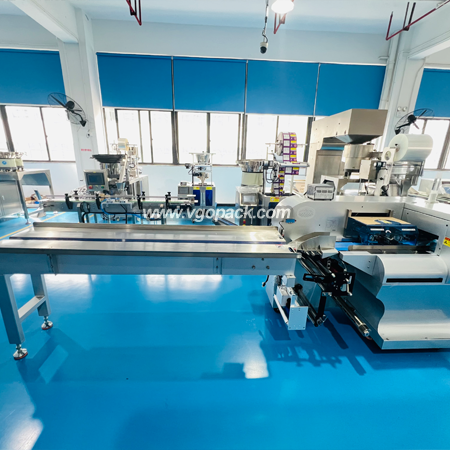

Model：VGO-HX250
Food Industry
1. Casual food: potato chips, French fries, popcorn, nuts, dried fruit
2. Confectionery: bread, cakes, mooncakes, Swiss rolls, puffs
3. Confectionery: hard candy, soft candy, chocolate, lollipops, chewing gum
4. Biscuits and snacks: cookies, cookies, egg rolls, rice crackers
5. Instant food products: instant noodles, instant rice, instant soup, seasoning packets
6. Frozen food: ice cream, frozen dumplings, frozen vegetables
Pharmaceutical industry
1. Pharmaceuticals: tablets, capsules, pills, punch
2. Health care products: vitamin tablets, calcium tablets, fish oil soft capsules
3.Medical equipment: medical swabs, gauze, disposable gloves
Daily chemical industry
1. Personal care products: soap, hand sanitizer, body wash, shampoo, conditioner
2. Cleaning products: laundry detergent, laundry detergent, dishwashing liquid
3. Cosmetics: masks, creams, skin care samples
4. Family daily use: disposable masks, wet wipes, sanitary napkins
5. Stationery: pens, erasers, pencil sharpeners
6. Toys: small plastic toys, blocks, puzzles
Industrial products
1. Hardware accessories: screws, nuts, spacers, small tools
2. Electronic components: resistors, capacitors, small circuit boards
1. Three servo motors with PLC control and independent PID temperature control, suitable for various packaging materials.
2. Simple and user-friendly HMI with convenient parameter setting and fault self-diagnosis. All controls are software-based, making adjustment and system upgrades easier.

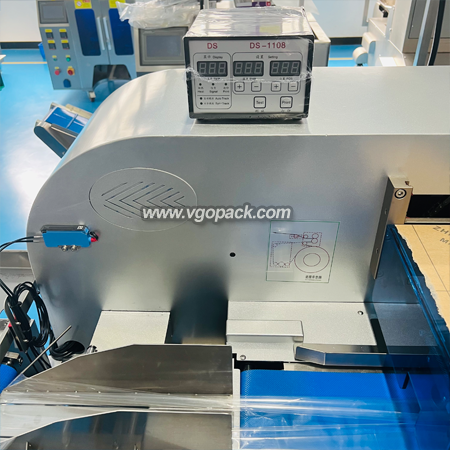

3. Advanced photoelectric eye-mark tracking technology with digital input of sealing and cutting positions helps prevent film sticking to the cutter and reduces film waste.
The machine automatically detects product length, packs automatically when products are present, and stops and waits when no product is detected, saving both time and packaging film.
4. The transmission system adopts a synchronous belt structure, providing compact design, high transmission accuracy, and easy maintenance.

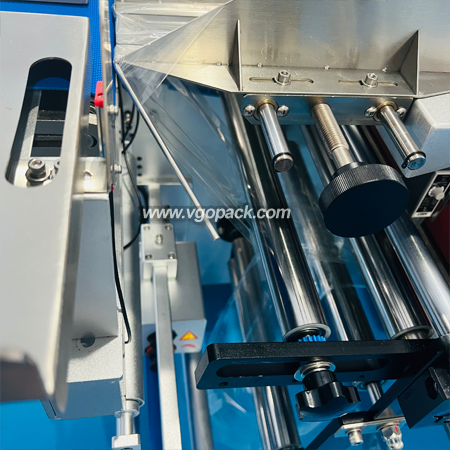

5. The adjustable bag support adopts a full-copper slide plate for more precise size adjustment.
6. Single-cantilever structure design with a cutter-holder positioning slot, allowing the cutter holder to be replaced without readjustment.
7. The machine frame is integrally formed from welded thick steel plates for more stable operation. The exterior uses automotive-grade sheet metal with a textured finish.
|
Model |
VGO-HX250 |
VGO-HX350 |
VGO-HX450 |
VGO-HX600 |
|
Film Width |
Max.250mm |
Max.350mm |
Max.450mm |
Max.600mm |
|
Packing Speed |
20-180bags/min |
20-180bags/min |
20-120bags/min |
20-120bags/min |
|
Bag Length |
65mm-longer |
65mm-longer |
100mm-longer |
120mm-longer |
|
Bag Width |
30-110mm |
50-160mm |
50-180mm |
100-280mm |
|
Product Height |
Max.55mm |
Max.65mm |
Max.75mm |
Max.110mm |
|
Power |
220V 50/60HZ 2.4KW |
220V50/60HZ 2.6KW |
220V 50/60HZ 3.2kW |
220V 50/60HZ 3.6KW |
|
Machine Weight |
560kg |
560kg |
700kg |
750kg |
|
Machine Dimensions |
(L)3592x(W)780x(H)1270 |
(L)3592x(W)880x(H)1270 |
(L)4000x(W)980x(H)1270 |
(L)4020x(W)1130x(H)1270 |
Food Industry
1. Casual food: potato chips, French fries, popcorn, nuts, dried fruit
2. Confectionery: bread, cakes, mooncakes, Swiss rolls, puffs
3. Confectionery: hard candy, soft candy, chocolate, lollipops, chewing gum
4. Biscuits and snacks: cookies, cookies, egg rolls, rice crackers
5. Instant food products: instant noodles, instant rice, instant soup, seasoning packets
6. Frozen food: ice cream, frozen dumplings, frozen vegetables
Pharmaceutical industry
1. Pharmaceuticals: tablets, capsules, pills, punch
2. Health care products: vitamin tablets, calcium tablets, fish oil soft capsules
3.Medical equipment: medical swabs, gauze, disposable gloves
Daily chemical industry
1. Personal care products: soap, hand sanitizer, body wash, shampoo, conditioner
2. Cleaning products: laundry detergent, laundry detergent, dishwashing liquid
3. Cosmetics: masks, creams, skin care samples
4. Family daily use: disposable masks, wet wipes, sanitary napkins
5. Stationery: pens, erasers, pencil sharpeners
6. Toys: small plastic toys, blocks, puzzles
Industrial products
1. Hardware accessories: screws, nuts, spacers, small tools
2. Electronic components: resistors, capacitors, small circuit boards
1. One year quality warrant if no human damage.
2. OEM service ,design service and buyer label is offered.
3. Online technical support service.
4. Warmly welcome to visit our factory.
